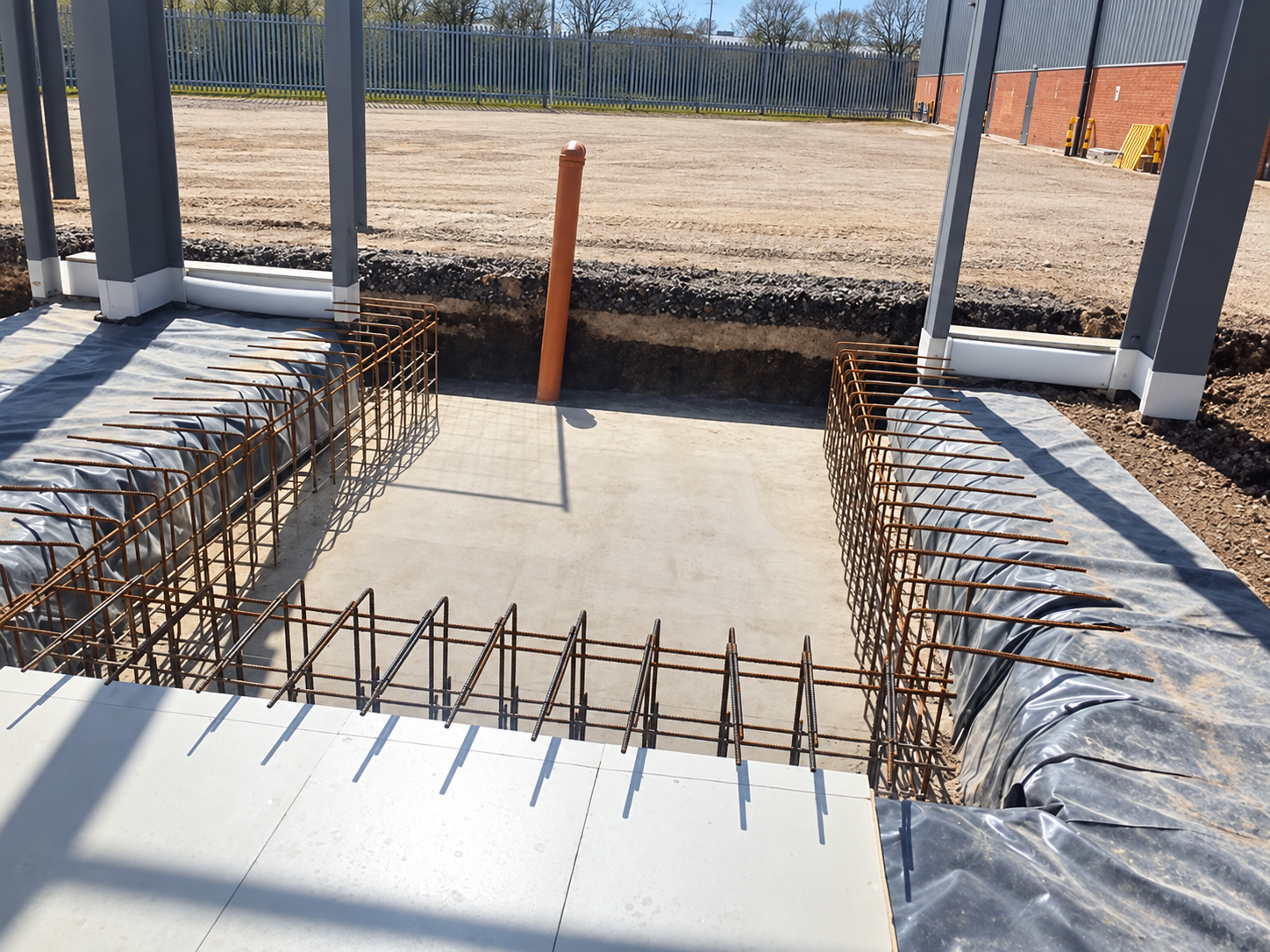

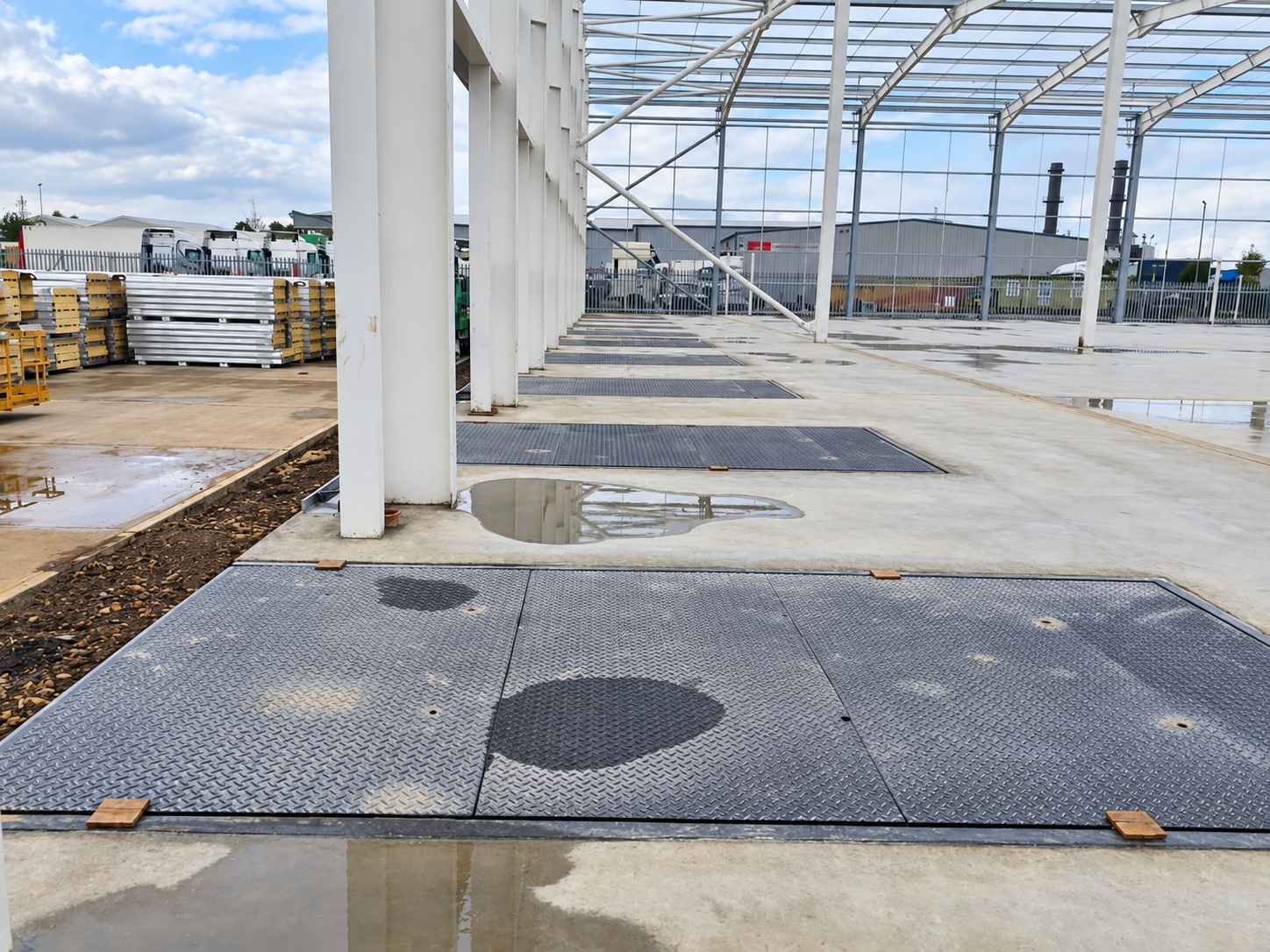

Cast-In Levellers
Dock Solutions installs cast-in dock levellers with reinforced concrete surrounds, creating a loading bay tailored to your building and operational requirements. The installation brings together pit preparation, frame positioning, leveller installation and surrounding concrete works to provide a durable, integrated loading solution.
One coordinated installation
Accurate fit and alignment
Durable construction
Product Specifications
Pit Depth
To match leveller designed depth
Pit Width
Leveller width + 30mm
Concrete Cast Size
300mm surrounding the pit
No items found.
No items found.

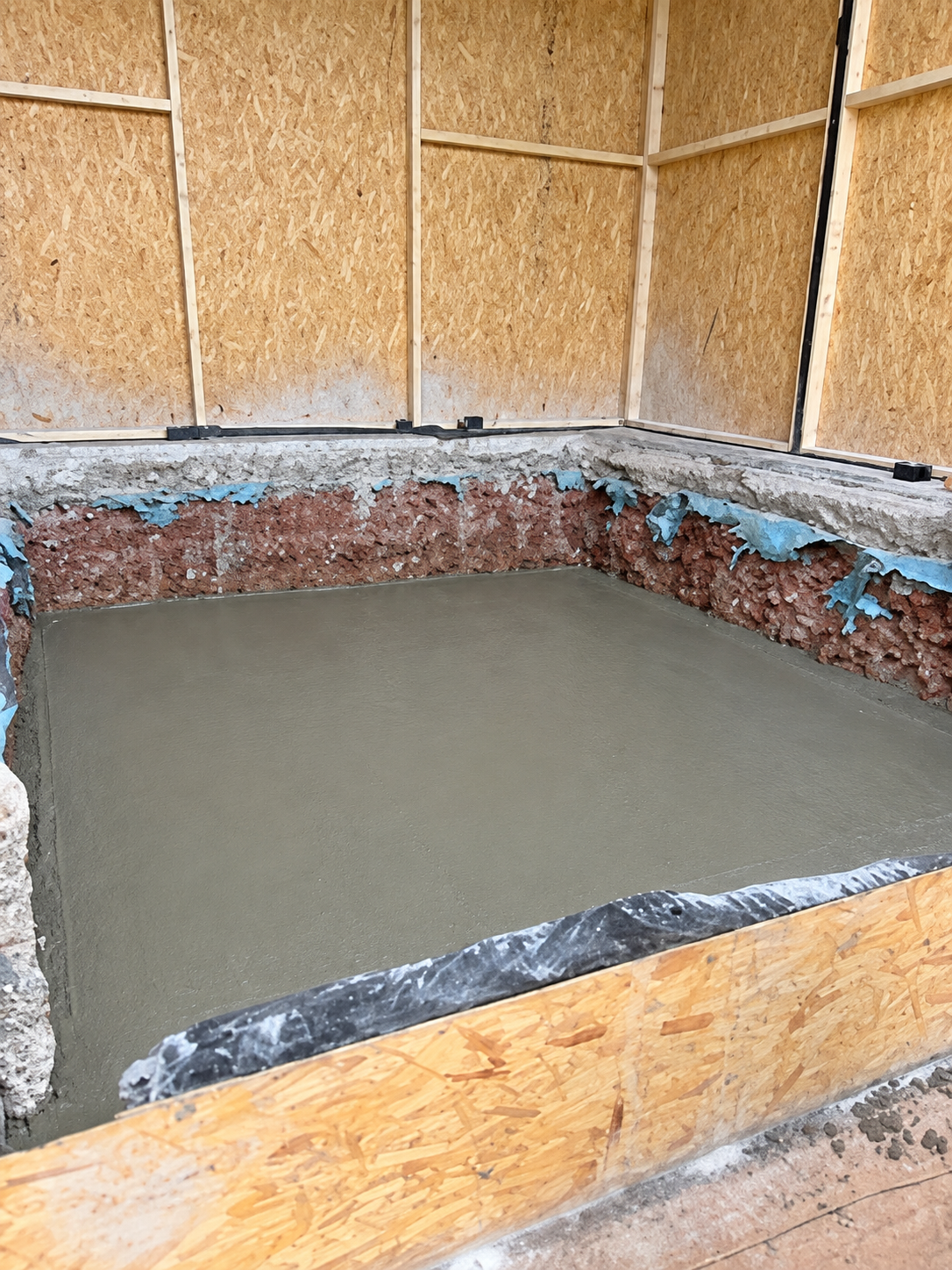

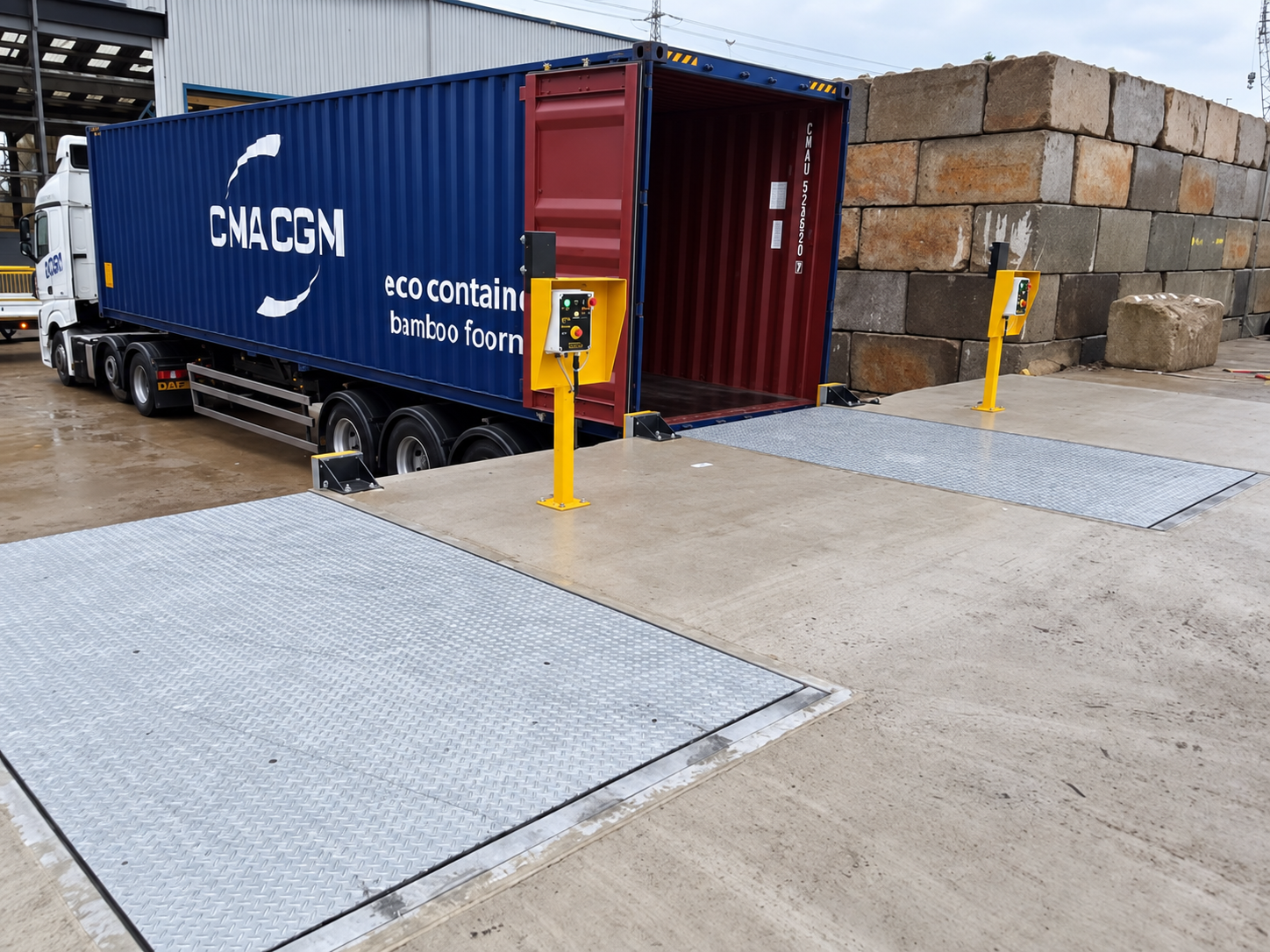

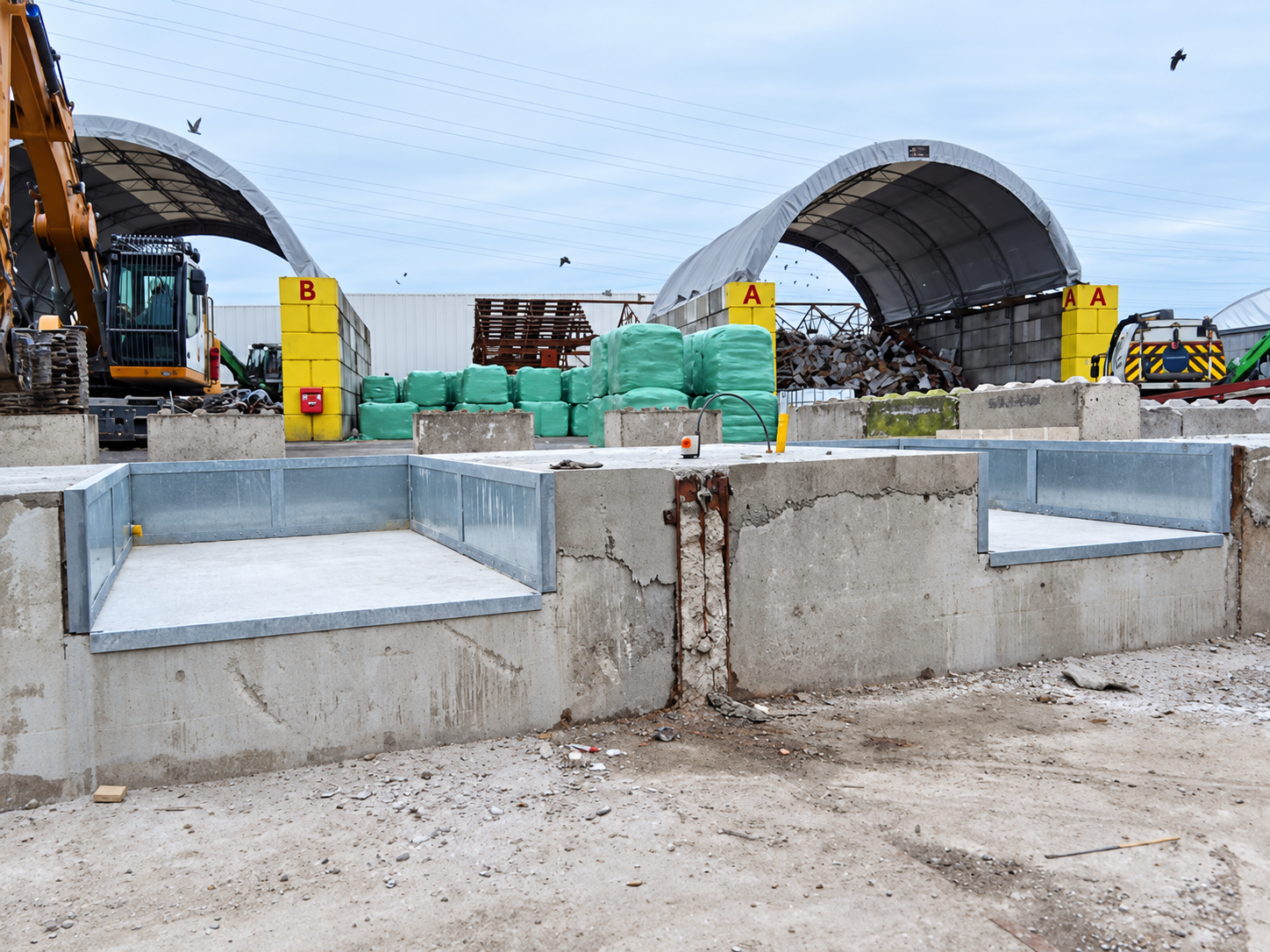

Pouring Pans
Pouring pans are manufactured to suit your purchased dock leveller, providing a preformed pit with the required dimensions. They simplify preparation by taking the guesswork out of forming the pit: cut or excavate the specified opening, position and level the pan, then backfill around it with concrete to the installation specification.
Exact fit for your leveller
Simpler installation
Reduced risk of costly rework
Product Specifications
Pit Width
Leveller Width + 30mm
Pit Length
Same Length As Leveller
Pit Depth
Leveller Depth + 10mm
No items found.
No items found.
